TRACSTAR900

Out of stock

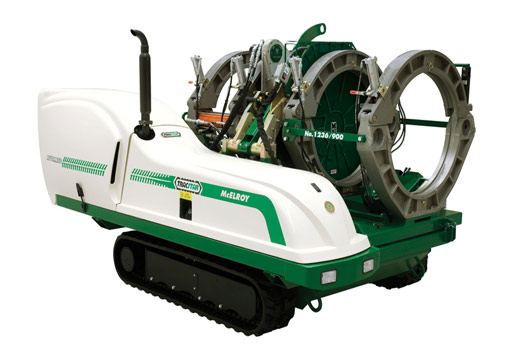

The TracStar900 fuses pipes from 12″ IPS to 36″ DE (340mm to 900mm) sizes. On the ground or in the trench, these all-new machines bring the flexibility of smaller machines to large-diameter melting. This fusion machine has all the advantages of its predecessors, with additional functions for work in the trench, in tight spaces.

The trolley has 4 jaws with a removable 3-jaw carriage, and is capable of overloading the heater and fronter to maximize functionality within a limited space. The TracStar 900 is installed on independently controlled self-propelled tracks and includes a wireless remote control. It has hydraulic power to assist in all fusion functions, including the operation of jaws, pipe elevators, heater and face. The machines allow the end fusion of most connectors, without special supports or the removal of the external jaw. Mitered inserts are available for making elbows.

The automatic TracStar900 controls and monitors heat, impregnation, melting and cooling cycles. It has an interbuilt data log function that keeps a record of each fusion joint, allowing you to check the integrity of the joints.

SKU: TRACSTAR900 Categories: ,

Description

Technical specifications

CAPACITY
Fuses size tubes: 12” IPS – 36” OD pipe (340mm – 900mm)
WEIGHT
Machine: 9527 lbs (4321Kg)
4 Gag cart configuration: 3865 lbs (1753Kg)
3 Jaw carriage configuration: 1820 lbs (826Kg)
Face: 480 lbs (218Kg)
Heater: 382 lbs (173Kg)
HYDRAULIC SYSTEM
System pressure: 2300 PSI (157.58 BAR) Max.
Hydraulic tank capacity: 12 Gallons (45 Liters)
ELECTRIC
Scribe: None, self-contained
ENGINE
Engine Type: 83 HP, 3300cc, 4-cylinder
Fuel type: Diesel
Fuel tank capacity: 23 Gallons (87 Liters)
Tank operating capacity: 17 Hours
Starting system : Electric
FEEDING
Heater power : 20,461 Watt
Face feed : Hydraulics
CHASSIS
Frame: Welded steel pipe construction
Brake: Locking
MOBILITY
Tires: Rubber caterpillars
Transportation: Self-propelled
Vehicle speed: Low 1.04mph High 1.68mph
Elevation: Elevation points and elevation assembly
GUARANTEE
Term: 3 years
