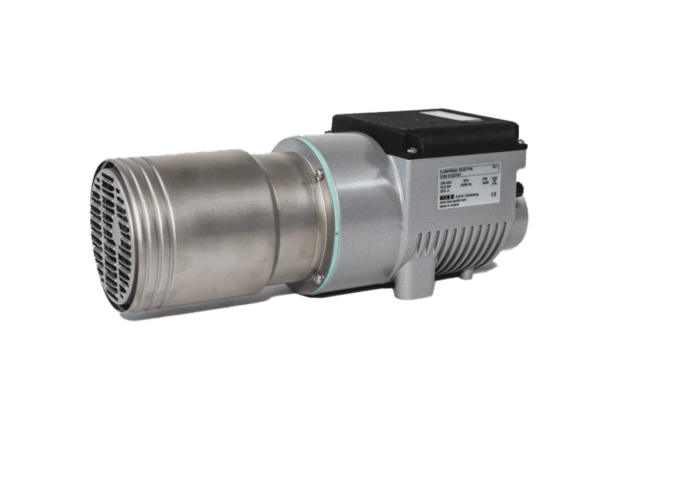

The XL92 is an industrial heater for continuous work. With progressive regulation of the temperature up to 650ºC and works with external air.

Available in three different powers and voltages:

  • 5900W – 400V
  • 11800W – 400V
  • 17400W – 400V


Technical specifications

Item No. 5102761 5102760 5102765
Voltage V 3×400
Power W 5900 11800 17400
Frequency HZ 50/60
Max. temperature ºC 320 650
Min. amount of air l/min 1000
Air connection Ø mm 60
Download port Ø mm 92
Dimensions (l x to x a) mm 328x122x124
Weight Kg 3,3
Safety Class II
Conformity mark CE

Additional information


XL92/5102761, XL92/5102760, XL92/5102765
