PL315CNC.

PL315CNC

Out of stock

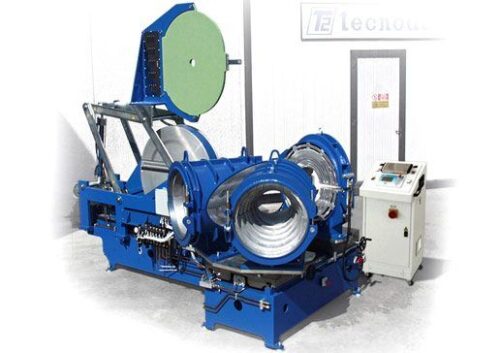

The PL315 CNC is an automatic machine for welding pipe and elbows up to 315mm and construction of Tes up to 250mm in Polyethylene (PE) and Polypropylene (PP). By incorporating the CNC switchboard, the PL315 becomes a fully automatic machine.

With the 315mm pivot clamps, you can make welds of different diameters at an angle with a maximum of 30º per weld. It is distinguished from the others by its great maneuverability and easy handling.

The PL315 CNC is composed of:

  • Basic machine with hydraulic movement.
  • Two main clamps of 315mm (with max. rotation angle of 30º).
  • Reductions of 90, 110, 125, 140, 160, 180, 200, 225, 250, 280 mm.
  • Electric grinder with safety switch.
  • PTFE mirror with adjustable temperature.
SKU: PL315CNC Categories: ,

Description

Technical specifications

ELECTRICAL DATA
Voltage 230 V 50 Hz
Poténcia Machine 6.0 kW 26 A
Heating element IP 54 3.70 kW
Refresher IP 44 1.50 kW
Hydraulic Unit IP 44 0.74 kW
HYDRAULIC DATA
Maximum working pressure 100 bar
Cylinders Selection 6.47 cm2
Pump Section 1.25 cm3
Capacity 3.5 l/min 2800 rpm
Hydraulic oil ISO 68
Deposit 2.5 l
MECHANICAL DATA
Transmission system Chain
Maximum carriage stroke 210 mm
Scroll Bar Diameter 35 mm
DIMENSIONS
Basic Machine 1.22×0.9×1.5 m
PESOS
Basic Machine 250 Kg
ELECTRICAL DATA
Voltage 230 V 50 Hz
Poténcia Machine 6.0 kW 26 A
Heating element IP 54 3.70 kW
Refresher IP 44 1.50 kW
Hydraulic Unit IP 44 0.74 kW
HYDRAULIC DATA
Maximum working pressure 100 bar
Cylinders Selection 6.47 cm2
Pump Section 1.25 cm3
Capacity 3.5 l/min 2800 rpm
Hydraulic oil ISO 68
Deposit 2.5 l
MECHANICAL DATA
Transmission system Chain
Maximum carriage stroke 210 mm
Scroll Bar Diameter 35 mm
DIMENSIONS
Basic Machine 1.22×0.9×1.5 m
PESOS
Basic Machine 250 Kg
