MEGAMAC1236

Sin existencias

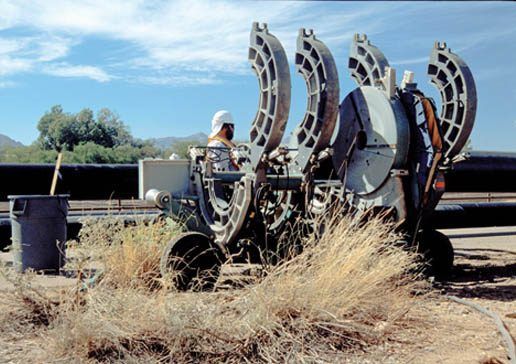

The MegaMac1236 is a redesigned machine that can weld pipes from 12″ IPS to 36″ DE (340mm to 900mm) sizes. In the field or trench, all-new Megamac1236 machines bring the flexibility and advantages of smaller machines to MegaMc’s large-diameter melting. This fusion machine has all the advantages of its predecessors, with additional functions for work in the trench, in tight spaces.

The body of the Megamac1236 has 4 jaws with a removable 3-jaw carriage, and is capable of overcharging the heater and face to maximize functionality within a limited space. The machines allow the end fusion of most connectors, without special supports or the removal of the external jaw. Mitered inserts are available for making elbows.

[fusion_global id=»2371″]

SKU: MEGAMAC1236 Categorías: ,

Descripción

[fusion_builder_container type=»flex» hundred_percent=»no» hundred_percent_height=»no» min_height_medium=»» min_height_small=»» min_height=»» hundred_percent_height_scroll=»no» align_content=»stretch» flex_align_items=»flex-start» flex_justify_content=»flex-start» flex_column_spacing=»» hundred_percent_height_center_content=»yes» equal_height_columns=»no» container_tag=»div» menu_anchor=»» hide_on_mobile=»small-visibility,medium-visibility,large-visibility» status=»published» publish_date=»» class=»» id=»» margin_top_medium=»» margin_bottom_medium=»» margin_top_small=»» margin_bottom_small=»» margin_top=»0″ margin_bottom=»20″ padding_top_medium=»» padding_right_medium=»» padding_bottom_medium=»» padding_left_medium=»» padding_top_small=»» padding_right_small=»» padding_bottom_small=»» padding_left_small=»» padding_top=»0″ padding_right=»0″ padding_bottom=»2%» padding_left=»0″ link_color=»» link_hover_color=»» border_sizes_top=»» border_sizes_right=»» border_sizes_bottom=»» border_sizes_left=»» border_color=»» border_style=»solid» box_shadow=»no» box_shadow_vertical=»» box_shadow_horizontal=»» box_shadow_blur=»0″ box_shadow_spread=»0″ box_shadow_color=»» box_shadow_style=»» z_index=»» overflow=»» gradient_start_color=»» gradient_end_color=»» gradient_start_position=»0″ gradient_end_position=»100″ gradient_type=»linear» radial_direction=»center center» linear_angle=»180″ background_color=»» background_image=»» skip_lazy_load=»» background_position=»center center» background_repeat=»no-repeat» fade=»no» background_parallax=»none» enable_mobile=»no» parallax_speed=»0.3″ background_blend_mode=»none» video_mp4=»» video_webm=»» video_ogv=»» video_url=»» video_aspect_ratio=»16:9″ video_loop=»yes» video_mute=»yes» video_preview_image=»» render_logics=»» absolute=»off» absolute_devices=»small,medium,large» sticky=»off» sticky_devices=»small-visibility,medium-visibility,large-visibility» sticky_background_color=»» sticky_height=»» sticky_offset=»» sticky_transition_offset=»0″ scroll_offset=»0″ animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_offset=»» filter_hue=»0″ filter_saturation=»100″ filter_brightness=»100″ filter_contrast=»100″ filter_invert=»0″ filter_sepia=»0″ filter_opacity=»100″ filter_blur=»0″ filter_hue_hover=»0″ filter_saturation_hover=»100″ filter_brightness_hover=»100″ filter_contrast_hover=»100″ filter_invert_hover=»0″ filter_sepia_hover=»0″ filter_opacity_hover=»100″ filter_blur_hover=»0″][fusion_builder_row][fusion_builder_column type=»1_1″ layout=»1_1″ align_self=»auto» content_layout=»column» align_content=»flex-start» valign_content=»flex-start» content_wrap=»wrap» spacing=»» center_content=»no» link=»» target=»_self» link_description=»» min_height=»» hide_on_mobile=»small-visibility,medium-visibility,large-visibility» sticky_display=»normal,sticky» class=»» id=»» type_medium=»» type_small=»» order_medium=»0″ order_small=»0″ dimension_spacing_medium=»» dimension_spacing_small=»» dimension_spacing=»» dimension_margin_medium=»» dimension_margin_small=»» margin_top=»» margin_bottom=»» padding_medium=»» padding_small=»» padding_top=»» padding_right=»» padding_bottom=»» padding_left=»» hover_type=»none» border_sizes=»» border_color=»» border_style=»solid» border_radius=»» box_shadow=»no» dimension_box_shadow=»» box_shadow_blur=»0″ box_shadow_spread=»0″ box_shadow_color=»» box_shadow_style=»» overflow=»» background_type=»single» gradient_start_color=»» gradient_end_color=»» gradient_start_position=»0″ gradient_end_position=»100″ gradient_type=»linear» radial_direction=»center center» linear_angle=»180″ background_color=»» background_image=»» background_image_id=»» background_position=»left top» background_repeat=»no-repeat» background_blend_mode=»none» render_logics=»» filter_type=»regular» filter_hue=»0″ filter_saturation=»100″ filter_brightness=»100″ filter_contrast=»100″ filter_invert=»0″ filter_sepia=»0″ filter_opacity=»100″ filter_blur=»0″ filter_hue_hover=»0″ filter_saturation_hover=»100″ filter_brightness_hover=»100″ filter_contrast_hover=»100″ filter_invert_hover=»0″ filter_sepia_hover=»0″ filter_opacity_hover=»100″ filter_blur_hover=»0″ animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_offset=»» last=»true» border_position=»all» first=»true»][fusion_text columns=»» column_min_width=»» column_spacing=»» rule_style=»default» rule_size=»» rule_color=»» content_alignment_medium=»» content_alignment_small=»» content_alignment=»» hide_on_mobile=»small-visibility,medium-visibility,large-visibility» sticky_display=»normal,sticky» class=»» id=»» margin_top=»» margin_right=»» margin_bottom=»» margin_left=»» font_size=»» fusion_font_family_text_font=»» fusion_font_variant_text_font=»» line_height=»» letter_spacing=»» text_transform=»none» text_color=»» animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_offset=»»]

Technical specifications

[/fusion_text][fusion_content_boxes layout=»icon-on-side» columns=»1″ link_type=»» button_span=»» link_area=»link-icon» link_target=»_blank» icon_align=»left» animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_delay=»» animation_offset=»» hide_on_mobile=»small-visibility,medium-visibility,large-visibility» class=»» id=»» title_size=»» heading_size=»2″ title_color=»» hue=»» saturation=»» lightness=»» alpha=»» body_color=»» backgroundcolor=»» icon=»» iconflip=»» iconrotate=»» iconspin=»no» iconcolor=»» icon_circle=»» icon_circle_radius=»» circlecolor=»» circlebordersize=»» circlebordercolor=»» outercirclebordersize=»» outercirclebordercolor=»» icon_size=»» icon_hover_type=»» hover_accent_color=»» image=»» image_id=»» image_max_width=»» margin_top=»» margin_bottom=»» /][fusion_table fusion_table_type=»1″ fusion_table_rows=»26″ fusion_table_columns=»1″ hide_on_mobile=»small-visibility,medium-visibility,large-visibility» class=»» id=»» animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_offset=»»]

CAPACITY
Fuse tubes size: 12» IPS – 36» OD pipe (340mm – 900mm)
WEIGHT
Machine: 6842 lbs (3104Kg)
4 Gag Cart Configuration: 3865 lbs (1754Kg)
3 Gag Cart Configuration: 1820 lbs (826Kg)
Trainer: 480 lbs (218Kg)
Heater: 382 lbs (174Kg)
HYDRAULIC SYSTEM
System pressure: 2300 PSI (157.58 BAR) Max.
Hydraulic tank capacity: 28 Gallons (106 Liters)
Engine : 20 HP, 3 Phase, 240V
FEEDING
Heater power20,461 Watt
Face feed:Hydraulics
CHASSIS
Frame: Welded steel pipe construction
Front axle: Articulated
Brake: Mechanical
MOBILITY
Rims: 6.90 – 9NHS, 75 PSI Max.
Transportation: It is pulled by a tow ring
Elevation : Elevation points and elevation assembly
GUARANTEE
Term: 3 years

[/fusion_table][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_global id=»842″]

MEGAMAC1236

Sin existencias

La MegaMac1236 es una máquina rediseñada que puede hacer soldaduras en tuberías de tamaños de 12” IPS a 36” DE (340mm a 900mm). Sobre el terreno o en la zanja, las máquinas Megamac1236 totalmente nuevas traen la flexibilidad y las ventajas de las máquinas más pequeñas a la fusión de gran diámetro de MegaMc. Esta máquina de fusión tiene todas las ventajas de sus predecesoras, con funciones adicionales para trabajo en la zanja, en espacios estrechos.

El cuerpo de la Megamac1236 tiene 4 mordazas con un carro extraíble de 3 mordazas, y es capaz de cargar superiormente el calentador y el encarador para maximizar la funcionalidad dentro de un espacio limitado. Las máquinas permiten la fusión de extremo de la mayoría de los conectores, sin soportes especiales ni la eliminación de la mordaza externa. Hay insertos ingleteados disponibles para fabricar codos.

[fusion_global id=»2371″]

SKU: MEGAMAC1236 Categorías: ,

Descripción

[fusion_builder_container type=»flex» hundred_percent=»no» hundred_percent_height=»no» min_height_medium=»» min_height_small=»» min_height=»» hundred_percent_height_scroll=»no» align_content=»stretch» flex_align_items=»flex-start» flex_justify_content=»flex-start» flex_column_spacing=»» hundred_percent_height_center_content=»yes» equal_height_columns=»no» container_tag=»div» menu_anchor=»» hide_on_mobile=»small-visibility,medium-visibility,large-visibility» status=»published» publish_date=»» class=»» id=»» margin_top_medium=»» margin_bottom_medium=»» margin_top_small=»» margin_bottom_small=»» margin_top=»0″ margin_bottom=»20″ padding_top_medium=»» padding_right_medium=»» padding_bottom_medium=»» padding_left_medium=»» padding_top_small=»» padding_right_small=»» padding_bottom_small=»» padding_left_small=»» padding_top=»0″ padding_right=»0″ padding_bottom=»2%» padding_left=»0″ link_color=»» link_hover_color=»» border_sizes_top=»» border_sizes_right=»» border_sizes_bottom=»» border_sizes_left=»» border_color=»» border_style=»solid» box_shadow=»no» box_shadow_vertical=»» box_shadow_horizontal=»» box_shadow_blur=»0″ box_shadow_spread=»0″ box_shadow_color=»» box_shadow_style=»» z_index=»» overflow=»» gradient_start_color=»» gradient_end_color=»» gradient_start_position=»0″ gradient_end_position=»100″ gradient_type=»linear» radial_direction=»center center» linear_angle=»180″ background_color=»» background_image=»» skip_lazy_load=»» background_position=»center center» background_repeat=»no-repeat» fade=»no» background_parallax=»none» enable_mobile=»no» parallax_speed=»0.3″ background_blend_mode=»none» video_mp4=»» video_webm=»» video_ogv=»» video_url=»» video_aspect_ratio=»16:9″ video_loop=»yes» video_mute=»yes» video_preview_image=»» render_logics=»» absolute=»off» absolute_devices=»small,medium,large» sticky=»off» sticky_devices=»small-visibility,medium-visibility,large-visibility» sticky_background_color=»» sticky_height=»» sticky_offset=»» sticky_transition_offset=»0″ scroll_offset=»0″ animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_offset=»» filter_hue=»0″ filter_saturation=»100″ filter_brightness=»100″ filter_contrast=»100″ filter_invert=»0″ filter_sepia=»0″ filter_opacity=»100″ filter_blur=»0″ filter_hue_hover=»0″ filter_saturation_hover=»100″ filter_brightness_hover=»100″ filter_contrast_hover=»100″ filter_invert_hover=»0″ filter_sepia_hover=»0″ filter_opacity_hover=»100″ filter_blur_hover=»0″][fusion_builder_row][fusion_builder_column type=»1_1″ layout=»1_1″ align_self=»auto» content_layout=»column» align_content=»flex-start» valign_content=»flex-start» content_wrap=»wrap» spacing=»» center_content=»no» link=»» target=»_self» link_description=»» min_height=»» hide_on_mobile=»small-visibility,medium-visibility,large-visibility» sticky_display=»normal,sticky» class=»» id=»» type_medium=»» type_small=»» order_medium=»0″ order_small=»0″ dimension_spacing_medium=»» dimension_spacing_small=»» dimension_spacing=»» dimension_margin_medium=»» dimension_margin_small=»» margin_top=»» margin_bottom=»» padding_medium=»» padding_small=»» padding_top=»» padding_right=»» padding_bottom=»» padding_left=»» hover_type=»none» border_sizes=»» border_color=»» border_style=»solid» border_radius=»» box_shadow=»no» dimension_box_shadow=»» box_shadow_blur=»0″ box_shadow_spread=»0″ box_shadow_color=»» box_shadow_style=»» overflow=»» background_type=»single» gradient_start_color=»» gradient_end_color=»» gradient_start_position=»0″ gradient_end_position=»100″ gradient_type=»linear» radial_direction=»center center» linear_angle=»180″ background_color=»» background_image=»» background_image_id=»» background_position=»left top» background_repeat=»no-repeat» background_blend_mode=»none» render_logics=»» filter_type=»regular» filter_hue=»0″ filter_saturation=»100″ filter_brightness=»100″ filter_contrast=»100″ filter_invert=»0″ filter_sepia=»0″ filter_opacity=»100″ filter_blur=»0″ filter_hue_hover=»0″ filter_saturation_hover=»100″ filter_brightness_hover=»100″ filter_contrast_hover=»100″ filter_invert_hover=»0″ filter_sepia_hover=»0″ filter_opacity_hover=»100″ filter_blur_hover=»0″ animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_offset=»» last=»true» border_position=»all» first=»true»][fusion_text columns=»» column_min_width=»» column_spacing=»» rule_style=»default» rule_size=»» rule_color=»» content_alignment_medium=»» content_alignment_small=»» content_alignment=»» hide_on_mobile=»small-visibility,medium-visibility,large-visibility» sticky_display=»normal,sticky» class=»» id=»» margin_top=»» margin_right=»» margin_bottom=»» margin_left=»» font_size=»» fusion_font_family_text_font=»» fusion_font_variant_text_font=»» line_height=»» letter_spacing=»» text_transform=»none» text_color=»» animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_offset=»»]

Especificaciones técnicas

[/fusion_text][fusion_content_boxes layout=»icon-on-side» columns=»1″ link_type=»» button_span=»» link_area=»link-icon» link_target=»_blank» icon_align=»left» animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_delay=»» animation_offset=»» hide_on_mobile=»small-visibility,medium-visibility,large-visibility» class=»» id=»» title_size=»» heading_size=»2″ title_color=»» hue=»» saturation=»» lightness=»» alpha=»» body_color=»» backgroundcolor=»» icon=»» iconflip=»» iconrotate=»» iconspin=»no» iconcolor=»» icon_circle=»» icon_circle_radius=»» circlecolor=»» circlebordersize=»» circlebordercolor=»» outercirclebordersize=»» outercirclebordercolor=»» icon_size=»» icon_hover_type=»» hover_accent_color=»» image=»» image_id=»» image_max_width=»» margin_top=»» margin_bottom=»» /][fusion_table fusion_table_type=»1″ fusion_table_rows=»26″ fusion_table_columns=»1″ hide_on_mobile=»small-visibility,medium-visibility,large-visibility» class=»» id=»» animation_type=»» animation_direction=»left» animation_speed=»0.3″ animation_offset=»»]

CAPACIDAD
Fusiona tubos de tamaño: 12’’ IPS – 36’’ OD pipe (340mm – 900mm)
PESO
Máquina: 6842 lbs (3104Kg)
4 Configuración de carro de mordaza: 3865 lbs (1754Kg)
3 Configuración de carro de mordaza: 1820 lbs (826Kg)
Encarador: 480 lbs (218Kg)
Calentador: 382 lbs (174Kg)
SISTEMA HIDRÁULICO
Presión del sistema: 2300 PSI (157.58 BAR) Max.
Capacidad del depósito hidráulico: 28 Galones (106 Litros)
Motor : 20 HP, 3 Phase, 240V
ALIMENTACIÓN
Alimentación del calentador 20,461 Watt
Alimentación del encarador: Hidráulica
CHASIS
Marco: Construcción de tubo de acero soldado
Eje delantero: Articulado
Freno: Mecánico
MOVILIDAD
Llantas: 6.90 – 9NHS, 75 PSI Max.
Transportación: Se tracciona mediante una anilla de remolque
Elevación : Puntos de elevación y conjunto de elevación
GARANTÍA
Plazo: 3 años

[/fusion_table][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_global id=»842″]
